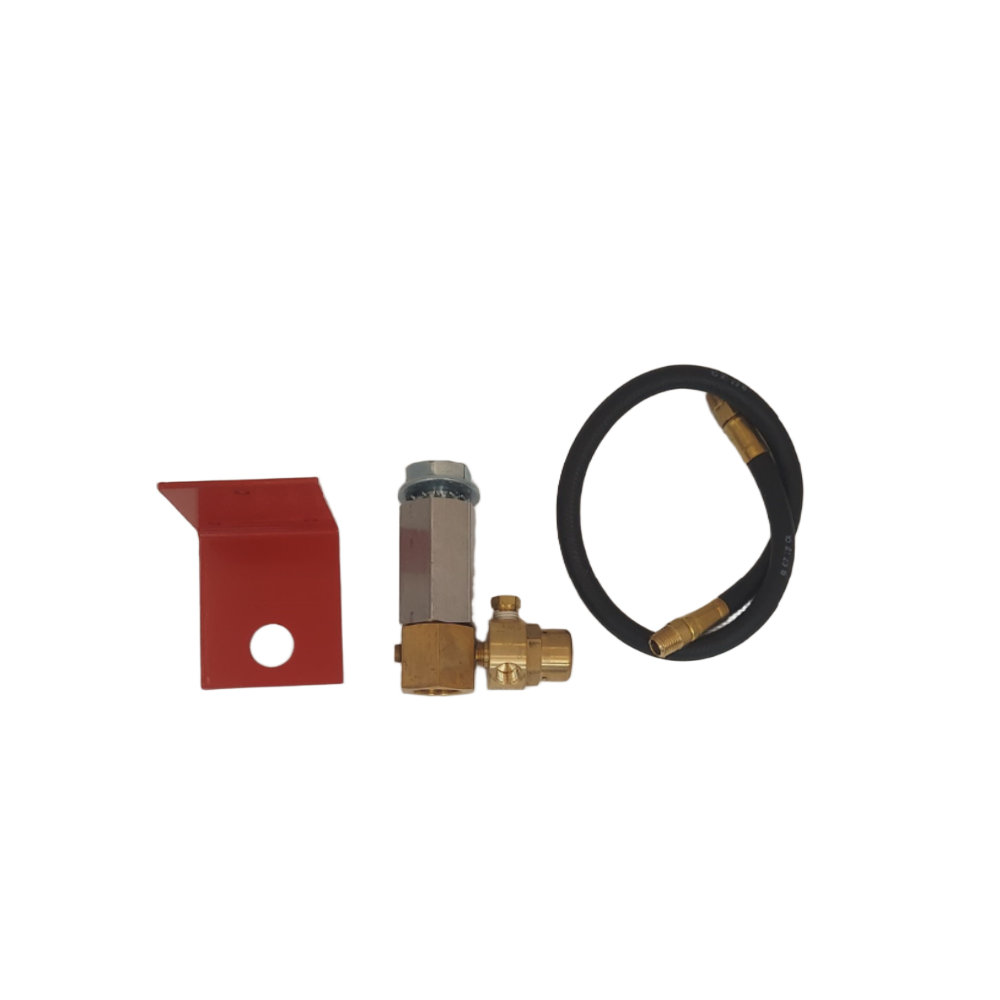

R-102 Regulated Actuator 418691

The Ansul 418691 is a pressure-regulated actuator for ANSUL R-102 restaurant fire suppression systems, controlling agent discharge from the cylinder during activation. In plain terms: this is the mechanism that opens the suppression cylinder valve when the system fires. When the Automan control head detects that a fusible link has melted or the manual pull station has been activated, it sends a pneumatic signal through the actuation tubing — the regulated actuator receives that signal and uses it to open the valve that releases the PRX wet chemical agent toward the kitchen nozzles. The "regulated" part means the actuator incorporates pressure regulation components that ensure consistent, controlled valve opening regardless of minor pressure variations in the actuation supply.

This component is critical to system reliability. An actuator that sticks, opens too slowly, or fails to open at all means the agent never reaches the fire — even if every other part of the system is working perfectly. The regulated design is factory-calibrated, which is why it should always be replaced as a complete unit rather than repaired piecemeal in the field. If the actuator malfunctions, the entire 418691 assembly gets swapped out to ensure the regulated pressure calibration is reset to factory specification.

Inspect the 418691 at every semi-annual NFPA 17A and NFPA 96 service visit for corrosion, physical damage, and correct actuation function during the simulated discharge test. Available through authorized ANSUL distributors. The ANSUL R-102 system manual specifies the complete actuator inspection and replacement procedure. After any system discharge, inspect the actuator before re-arming — replace if any damage from the discharge event is found. Document in the fire suppression system inspection record.

Test the 418691 actuator at every semi-annual NFPA 17A and NFPA 96 inspection using the ANSUL R-102 simulated discharge test procedure — this tests the actuation pathway without releasing the live agent charge. Verify the actuator cycles cleanly and shows no physical damage or corrosion. After any live system discharge, inspect the actuator before re-arming. If the actuator shows any damage, binding, or fails to cycle correctly during testing, replace the complete 418691 assembly — do not attempt to rebuild or repair the regulated actuator's internal pressure calibration components in the field. Document all inspection findings and any replacement in the fire suppression system inspection record.

What is the difference between the 418691 and the 429850 regulated actuator?

Both are regulated actuators for ANSUL suppression systems, but they serve different system configurations. Verify which actuator is correct for your specific ANSUL R-102 Automan configuration using the ANSUL R-102 system documentation or by consulting authorized ANSUL distributors. Using the wrong actuator model can result in incorrect valve opening characteristics that affect agent delivery performance.

Can I rebuild the 418691 instead of replacing it?

No. The 418691 is a factory-calibrated assembly — the pressure regulation components are set to specification during manufacturing and cannot be reliably recalibrated in the field. Always replace with a new complete 418691 assembly. Attempting to rebuild the regulated actuator risks incorrect pressure calibration that could cause the system to fail to activate at the correct pressure or to activate when it shouldn't.
