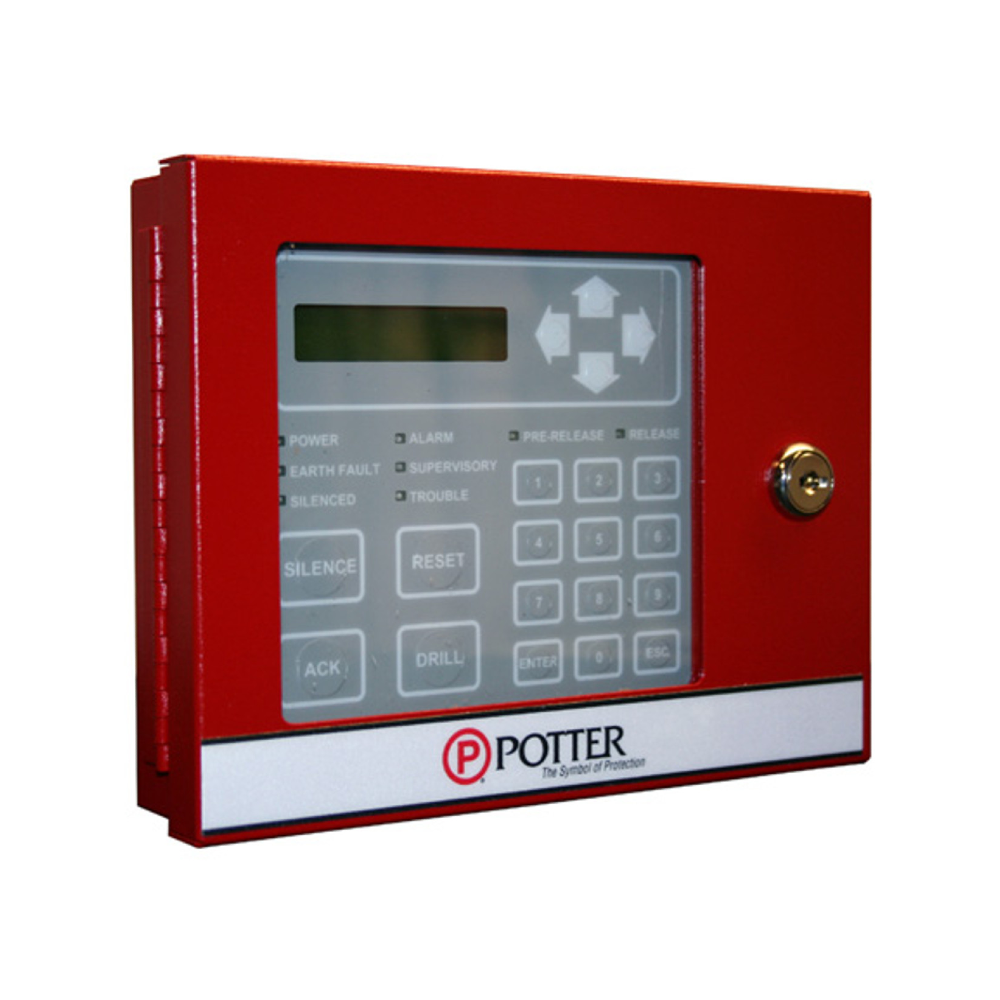

RA-6075R LCD Remote Releasing Annunciator

The Potter RA-6075R LCD Remote Releasing Annunciator (3006462) is a high-performance, addressable interface designed exclusively for the Potter PFC-6075R Releasing Fire Control Panel. In a sophisticated life-safety network, the main fire panel is often tucked away in a secured mechanical room or basement. The RA-6075R acts as the strategic front line, extending the panel's full monitoring and control suite to accessible locations such as security desks, nurse stations, or facility manager offices.

Specifically engineered for agent discharge applications, the RA-6075R does more than just report fire alarms; it provides real-time, granular data on the state of specialized suppression systems such as FM-200, Clean Agent, or Pre-Action Sprinklers. For fire protection stakeholders, this annunciator is the definitive tool for maintaining situation awareness, ensuring that even if the main panel is out of sight, the system status is always visible.

Supervised P-Link Bus Topology

The RA-6075R communicates via a 4-wire P-Link bus utilizing the RS-485 protocol. This robust, differential signaling method provides high EMI immunity found in industrial environments. Two wires are dedicated to the power-limited 24 VDC supply, while the other two handle high-speed data. The connection is a fully supervised loop; if a wire is cut, the releasing fire control panel will report a P-Link Trouble instantly.

Massive Wiring Reach and Scalability

The RS-485 bus supports up to 6,500 feet (1,981 meters) using standard 18 AWG twisted-pair wire. A single PFC-6075R panel can manage up to 31 remote annunciators, allowing for a multi-point command center approach where security personnel at different facility locations can all view the exact point of an alarm simultaneously.

Releasing-Specific Logic: Pre-Release and Activation Awareness

The Pre-Release LED (amber) is a vital indicator for facility managers in data center or cleanroom environments. When the system enters a pre-release state, it signifies that the cross-zoning logic has been satisfied and a countdown has begun, allowing staff to potentially use a manual abort switch to stop a costly chemical discharge. The Release LED (red) latches once the suppression agent has been deployed, providing immediate confirmation to first responders that the hazard area may be oxygen-deficient before entry.

32-Character Backlit LCD

The 16x2 display provides point-specific alphanumeric data. Instead of a generic zone alarm, the RA-6075R can display specific Point-ID labels such as "Smoke Det - Server Row 4" or "Manual Pull - Chemical Storage," enabling a targeted emergency procedure.

Universal Electrical Box Mounting

Designed to fit standard single-gang or double-gang electrical boxes, the RA-6075R simplifies the rough-in phase of construction. There is no need for specialized proprietary back-boxes, allowing contractors to use off-the-shelf infrastructure.

Integrated Potter Lock Security

The keypad is protected by a heavy-duty sheet metal door featuring the standardized Potter lock. This ensures that silence and reset functions are only accessible to authorized personnel, preventing accidental system bypasses by untrained staff.

• Data Centers and Server Rooms: Monitoring FM-200 and clean agent suppression systems with pre-release and abort awareness at security desks.
• Healthcare Facilities: Extending panel visibility to nurse stations where staff must be immediately notified of suppression events.
• Pre-Action Sprinkler Systems: Providing remote monitoring for warehouse or archival facilities where suppression sequence status is critical.
• Multi-Building Campus Installations: Deploying up to 31 annunciators across a single PFC-6075R panel for distributed command center coverage.
• Chemical Storage and Hazardous Areas: Enabling remote point-ID display so responders can identify the exact discharge location before entering the hazard zone.

P-Link Supervision Verification

During commissioning, the technician must open the communication loop to verify that the main panel reports a trouble within code-specified time limits. This ensures the 6,500-foot loop is actually being supervised.

LCD Legibility and Backlight Audit

During annual inspections, the LCD backlight must be verified. If character blocks are ghosting, the unit should be replaced. In a smoke-filled corridor, the high-contrast backlight is the only way for responders to read the Point-ID.

Keypad Functionality Check

Every button, including Reset, Silence, Acknowledge, and Drill, should be tested to ensure the tactile response remains crisp. In industrial control rooms, the membrane can occasionally become sluggish and require cleaning.

Proper Grounding Protocol

Because the RS-485 bus covers long distances, it is susceptible to surges. Ensure the P-Link shield is grounded only at the main panel to prevent data corruption across the remote annunciators.

Can I use the RA-6075R with a standard Potter PFC-6075 (non-releasing) panel?

While the RA-6075R uses the same P-Link protocol, the releasing fire control panel LEDs (Pre-Release and Release) will only function correctly when paired with the PFC-6075R model. For standard fire monitoring, the RA-6075 (non-R) is the appropriate choice.

What happens if the main panel loses power?

The RA-6075R will continue to operate on the main panel's backup batteries. If the 4-wire loop remains intact, the annunciator will stay online until batteries are exhausted, providing constant status updates during a blackout.

Do I need a separate power supply for the annunciators?

For small installations (1-4 units), the panel's auxiliary power is usually sufficient. However, for a full 31-unit network or very long wire runs, a Potter PSN-1000 power expander is recommended to ensure the voltage remains within the operating window at the furthest unit.
