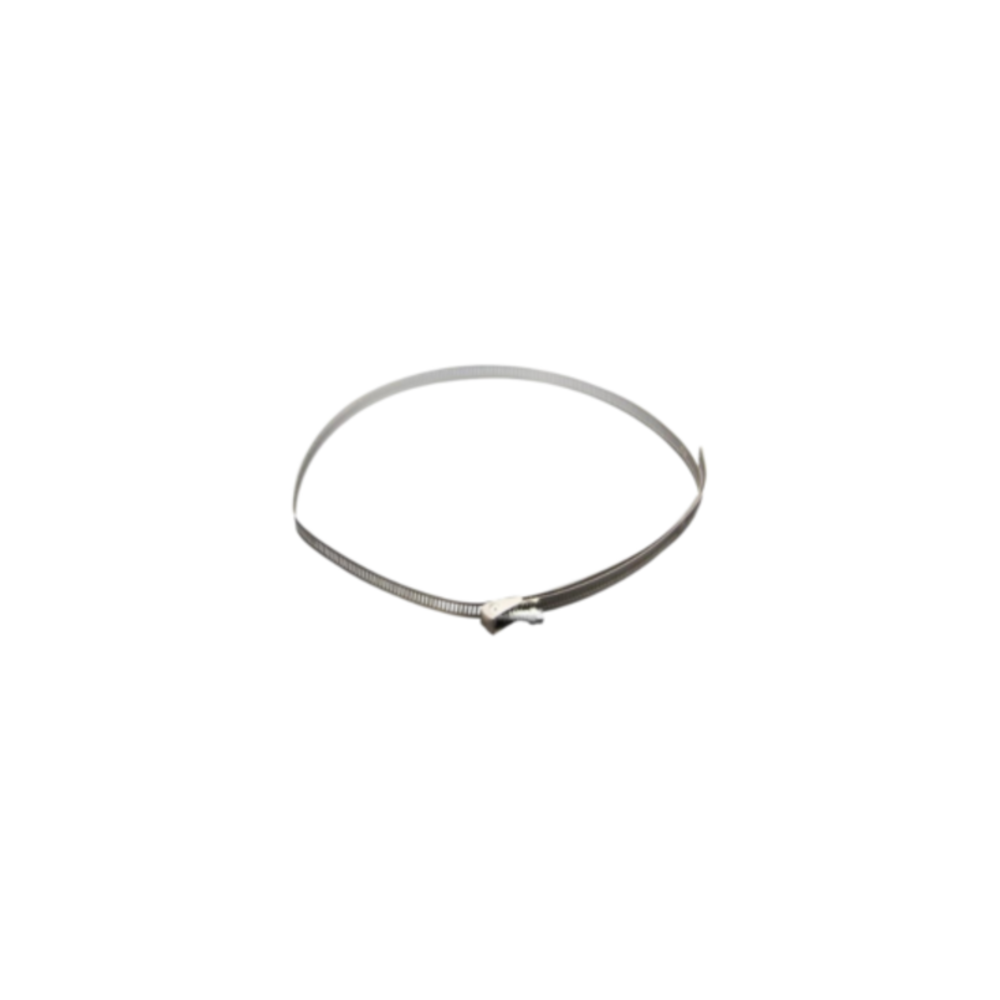

OEM Range Guard 1.25 to 2.5 Tank Replacement Strap 32" 255700
Are you a fire protection company? Get wholesale pricing at HedrickPro
Wholesale PricingThe Range Guard Tank Replacement Strap (P/N 255700, also listed as WK-255700-000) is a 32-inch replacement cylinder bracket strap for Range Guard 1.25-gallon and 2.5-gallon wet chemical agent cylinders. The strap is the component that secures the agent cylinder within its wall bracket, holding it firmly in the correct position for connection to the control head, actuation components, and distribution piping. A worn, damaged, or missing strap leaves the cylinder unsecured, which can allow it to shift out of alignment or fall free from the bracket over time.
This is a direct replacement part for the factory-installed strap used on the RG-1.25G and RG-2.5G cylinder brackets. Over years of service in a commercial kitchen environment, bracket straps can develop fatigue cracks, corrosion, or mechanical damage from regular service handling. A technician who notices strap wear during semiannual service can replace the strap with this OEM component without having to replace the entire bracket assembly.
| Feature | Details |
|---|---|
| Manufacturer | Badger Fire Protection (Kidde-Fenwal) |
| Part Number | 255700 (WK-255700-000) |
| Component Type | Cylinder Bracket Replacement Strap |
| Length | 32 Inches |
| Compatible Cylinders | Range Guard 1.25-Gallon (RG-1.25G) and 2.5-Gallon (RG-2.5G) Wet Chemical Cylinders |
| Function | Secures Agent Cylinder in Wall Bracket |
- Confirm Cylinder Compatibility: This strap is designed for the 1.25-gallon and 2.5-gallon Range Guard cylinders. Larger cylinders use a different strap sized for their bracket dimensions.
- Semiannual Professional Service: A qualified technician inspects the bracket strap for wear, cracking, or corrosion at each required semiannual service interval and replaces it if any damage is found.
- Inspect After Any System Actuation: After a system discharge, the bracket and strap should be checked as part of the post-discharge inspection, since handling a discharged system can stress components beyond what normal standby service produces.
- OEM Part Only: Use only this OEM strap (P/N 255700) for these cylinder brackets. Generic replacement straps may not match the strap length, attachment points, or load rating required for a secure cylinder installation.
Can I use this strap on a larger Range Guard cylinder bracket?
No. This 32-inch strap is sized for the RG-1.25G and RG-2.5G cylinder brackets. Larger cylinders such as the RG-4GS use a different bracket with a different strap. Confirm the strap length and bracket compatibility with your system's documentation before ordering.
How do I know if my current strap needs replacement?
A certified Range Guard technician inspects the strap during each semiannual service visit, looking for cracking, corrosion, deformation, or any sign that the strap is no longer holding the cylinder securely in the correct position. If the cylinder shows any movement in the bracket, or if the strap shows visible wear, it should be replaced immediately.
Does replacing the strap require taking the system offline?
Strap replacement may require temporarily removing the cylinder from the bracket, which takes the system out of service for that duration. A certified Range Guard distributor handles this as part of scheduled semiannual service to minimize the time the system is offline.
