Badger Total Flooding Nozzle, Single Item - 83-100005-001
Are you a fire protection company? Get wholesale pricing

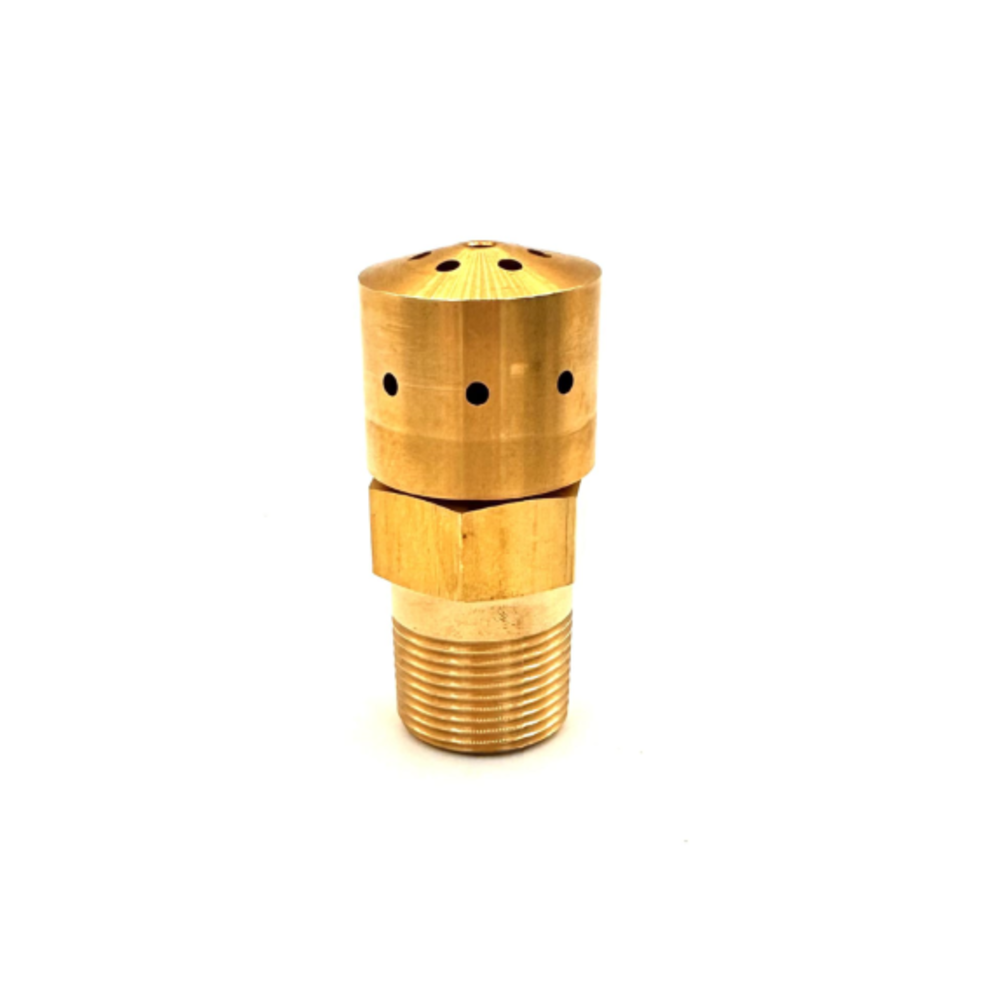

Wholesale PricingThe Badger Industry Guard Total Flooding Nozzle (P/N 83-100005-001) is an overhead dry chemical nozzle for total flood protection configurations in the Badger Industry Guard Industrial Dry Chemical Fire Suppression System. In a total flood application, the nozzle discharges agent from an overhead or upper-perimeter position to fill an enclosed hazard space with enough dry chemical agent to extinguish a fire anywhere in that volume, rather than targeting a specific surface. The Industry Guard system is Badger's pre-engineered dry chemical system for industrial high-hazard applications including spray booths, dip tanks, mixing rooms, and similar occupancies, and is governed by NFPA 17 (Dry Chemical Extinguishing Systems).
The nozzle family for the Badger Industry Guard system includes this total flooding nozzle, along with a three-way nozzle (P/N 83-100037-001) for pit, tunnel, or plenum/stack interface applications, and a tankside nozzle (P/N WK-259072-000) for side-mounted local application. Each nozzle type is specified based on the protected hazard geometry and the discharge pattern required by the system design. Nozzle selection, placement, and spacing are determined by a certified Badger Industry Guard installer per the system design manual. Sold individually.
| Feature | Details |
|---|---|
| Manufacturer | Badger Fire Protection (Kidde-Fenwal) |
| Part Number | 83-100005-001 |
| Nozzle Type | Total Flooding |
| Agent Type | ABC Dry Chemical |
| Sold As | Single Unit |
| System | Badger Industry Guard Industrial Dry Chemical Fire Suppression System |
| Governing Standard | NFPA 17 (Dry Chemical Extinguishing Systems) |
| Related Nozzles | Three-Way: P/N 83-100037-001 | Tankside: P/N WK-259072-000 |
- Certified Installer Required: The Badger Industry Guard system must be designed, installed, and serviced by a certified Badger Industry Guard distributor following the system design manual. Nozzle placement must match the engineered design exactly.
- Nozzle Cap: Confirm the blow-off cap is in place and undamaged at each inspection. Replace after any actuation or if the cap is found damaged during service.
- Semiannual Service: A certified technician inspects all nozzles for orifice blockage, corrosion, and correct positioning at each required service interval.
What is the difference between total flood and local application protection?
Total flood protection fills an enclosed space with enough dry chemical agent to extinguish any fire within that volume, regardless of where the fire is located. Local application directs agent specifically at the surface or object that is burning, without attempting to flood the entire space. The correct approach for a given hazard is determined during system design based on the hazard geometry, the presence or absence of enclosure walls, and the nature of the burning materials.
Can this nozzle be used in other dry chemical systems?
No. This nozzle is specifically designed and listed for use in the Badger Industry Guard system. Its orifice dimensions, flow characteristics, and discharge patterns have been tested and listed for that system's specific design parameters. Using it in another manufacturer's system would be outside the component's listing and void that system's certification.
