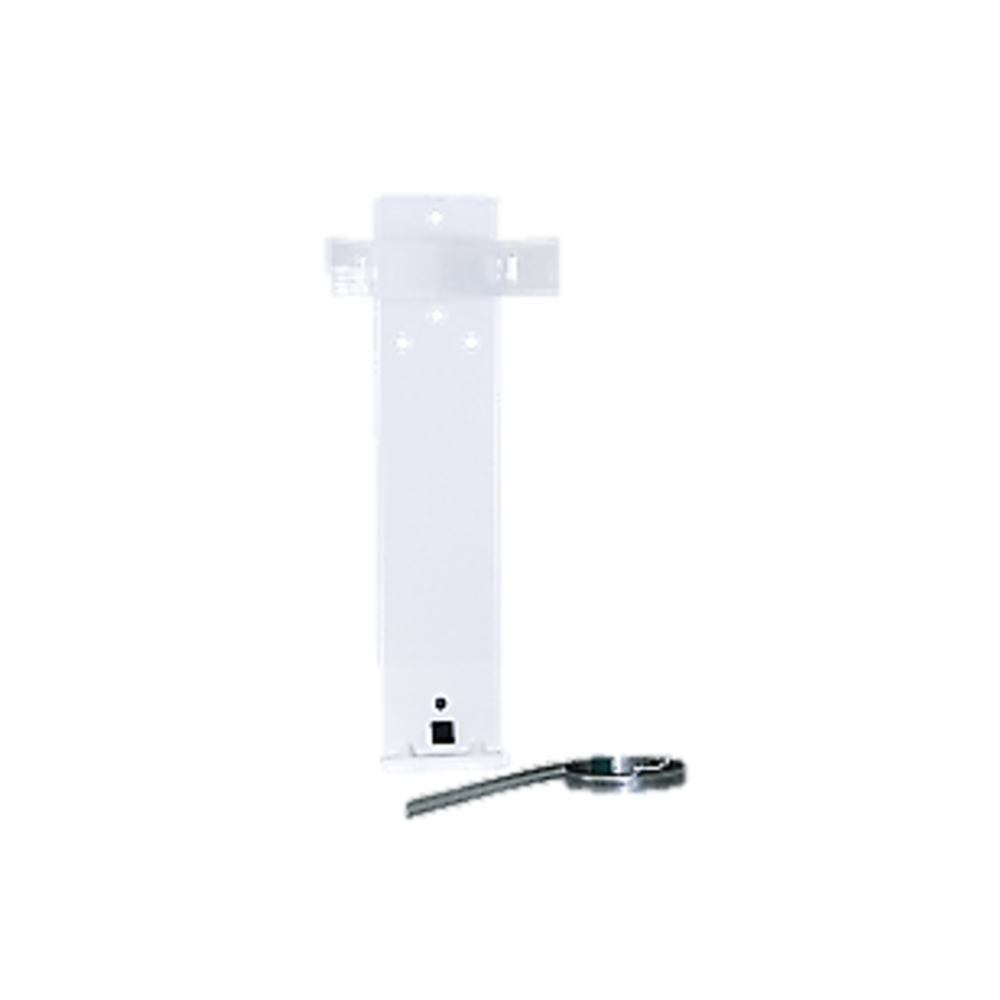

9197414 RANGE GUARD MEDIUM WALL BRACKET

The Range Guard 9197414 is a medium-size OEM wall bracket for Range Guard agent cylinders, compatible with various mid-range tank sizes used in commercial kitchen fire suppression system installations. The medium wall bracket is designed for flexible mounting configurations where a standard installation has sufficient vertical wall clearance and the cylinder dimensions fall within the medium bracket's support range. It is the most versatile bracket in the Range Guard lineup — serving the mid-size cylinder configurations that fall between the compact 9197415 short bracket and the heavy-duty 100013 shelf bracket.

Like all Range Guard OEM cylinder brackets, the 9197414 is engineered to maintain the specific cylinder positioning requirements of the range guard kitchen system manual. Correct positioning ensures the actuation tubing connections remain un-stressed, the agent cylinder sits plumb for complete agent delivery, and the system meets the physical layout requirements of its UL 300 listed installation design. Non-OEM or incorrect brackets that allow the cylinder to shift position can alter the actuation tubing routing and affect system discharge performance.

For fire protection contractors completing Range Guard kitchen fire suppression system installations across a variety of commercial kitchen configurations, stocking the full range of OEM Range Guard brackets — including the 9197414 medium, the 9197415 short, the 9197263 (2.6-gal), the 9197430 (1.3-gal), and the 100013 shelf bracket — ensures the correct hardware is always on hand for any range guard system configuration. All brackets should be inspected semi-annually per NFPA 17A, NFPA 96, and the range guard service manual, with findings documented in the fire suppression system inspection record.

Anchor the 9197414 to structural wall substrate per NFPA 96 and the range guard installation manual. Confirm that the mounting surface and fasteners are rated for the gross weight of the fully charged cylinder with a minimum 4:1 safety factor. Verify cylinder plumb and actuation tubing routing per the range guard fire suppression system manual as-built specifications. In high-vibration kitchen environments, retorque fasteners at each semi-annual NFPA 17A and NFPA 96 inspection. Verify the cylinder retention strap is tight and the bracket shows no corrosion or physical damage. Document in the fire suppression system inspection record and retain per the range guard service manual requirements.

How do I know if my cylinder requires the medium or short bracket?

Bracket selection is based on the specific cylinder model and available installation space. Refer to the range guard kitchen system manual and range guard nozzle chart pdf for your specific system configuration. If vertical wall space is limited, the 9197415 short bracket may be required. If standard wall clearance is available, the 9197414 medium bracket is the standard choice for mid-range cylinder configurations.

Where can I source the 9197414?

The 9197414 is available through authorized range guard distributors as part of the complete Range Guard OEM hardware catalog. For projects requiring multiple bracket types, sourcing through a single authorized distributor ensures consistent OEM hardware and availability of the full bracket range for any Range Guard cylinder configuration.
