9197415 Range Guard 4 Gallon Short Bracket
Are you a fire protection company? Get wholesale pricing at HedrickPro

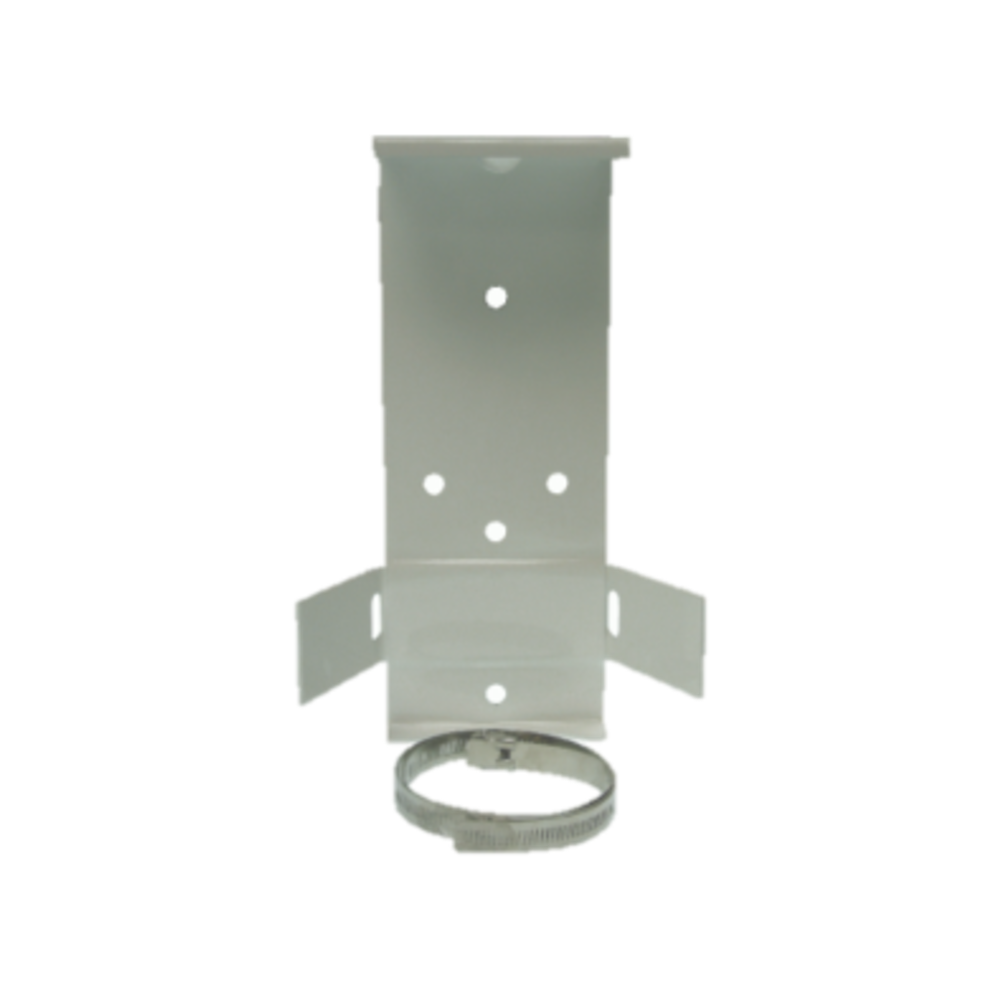

Wholesale PricingThe Range Guard 9197415 is a compact OEM wall bracket for 4-gallon Range Guard agent cylinders, specifically designed for space-constrained commercial kitchen installations where the standard medium wall bracket profile is too large. The "short" designation refers to the bracket's reduced vertical height — making it the preferred choice when ceiling clearance, adjacent equipment, or hood structure limits available vertical mounting space. This bracket is part of the complete Range Guard OEM hardware catalog available through authorized range guard distributors.
In commercial kitchen fire suppression system installations, the range guard installation manual specifies the correct bracket type for each cylinder model and installation configuration. The 9197415 short bracket is listed in the range guard fire suppression system installation manual as the approved compact wall bracket for 4-gallon cylinders in space-limited kitchen environments. Using a non-OEM or incorrectly sized bracket voids the range guard system's UL 300 listing and creates a structural risk if the cylinder is not properly supported.
The full Range Guard OEM bracket lineup covers every cylinder size and mounting configuration encountered in the field — including the 9197415 (4-gal short), 9197414 (medium), 9197263 (2.6-gal wall), 9197430 (1.3-gal wall), and 100013 (4 and 6-gal shelf). Together these brackets support the complete range guard system from the smallest countertop range guard rg 6g installation to larger multi-cylinder hood system configurations. The range guard system manual and range guard kitchen system manual provide cylinder placement and bracket selection guidance for each configuration. All brackets should be inspected semi-annually per NFPA 17A, NFPA 96, and the range guard service manual, with inspection results documented in the fire suppression system inspection record. Authorized range guard distributors can supply the complete bracket lineup for any project size.
| Feature | Details |
|---|---|
| Manufacturer | Range Guard (Badger) |
| Part Number | 9197415 |
| Mount Type | Compact wall mount (short profile) |
| Compatible Cylinder | Range Guard 4-gallon |
| Application | Space-constrained Range Guard kitchen suppression installations |
| Certifications | UL Listed, OEM Original |
Anchor to structural substrate per NFPA 96 and the range guard installation manual. Despite the compact profile, the 9197415 must provide the same structural support as a full-size bracket — verify fastener ratings for substrate type and gross cylinder weight. Confirm cylinder positioning per range guard fire suppression system manual as-built requirements. Verify actuation tubing routing from the cylinder to the Range Guard universal control head or compatible release module is within the maximum lengths specified in the range guard kitchen system manual. Inspect fasteners, retention strap, and bracket condition semi-annually per NFPA 17A and range guard service manual. Document in the fire suppression system inspection record.
What is the difference between the 9197415 short bracket and the 9197414 medium bracket?
Both support Range Guard 4-gallon cylinders, but the 9197415 has a reduced vertical height for space-constrained installations while the 9197414 is the standard-profile medium bracket for open-wall configurations. Choose based on available vertical mounting clearance per the range guard kitchen system manual layout specifications.
Where can I source Range Guard brackets?
All Range Guard OEM brackets — including the 9197415 — are available through authorized range guard distributors. The badger range guard manual and range guard fire suppression system installation manual provide complete bracket selection guidance. For range guard system cost and pricing information, contact an authorized range guard distributor directly.
