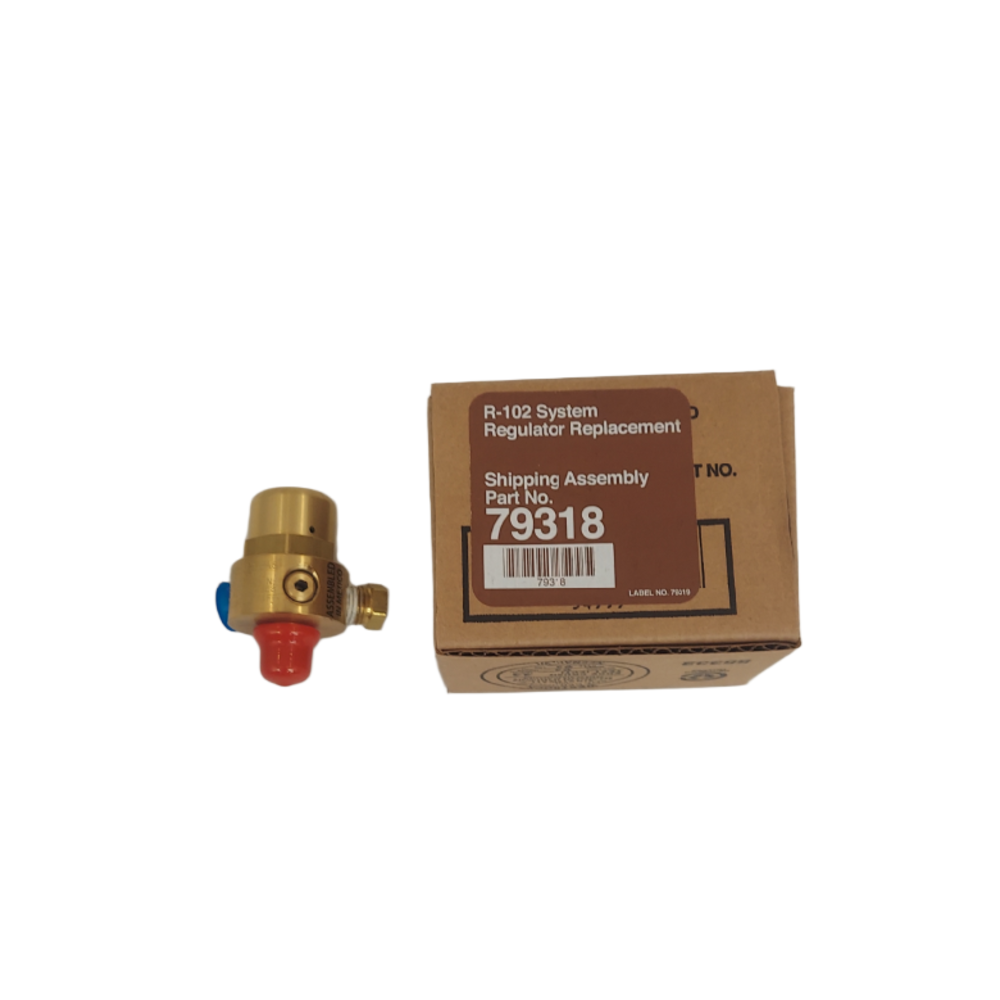

System Regulator Replacement for R-102 079318

The Ansul R-102 System Regulator (079318) is a high-performance pneumatic component engineered to manage the discharge kinetics of the R-102 wet chemical fire suppression system. In the critical seconds following a system activation, the pressurized nitrogen propellant must be precisely governed to ensure the ANSULEX liquid agent is delivered to the nozzles at a constant, predictable rate. The 079318 regulator acts as the system's primary pressure governor, stepping down high-velocity propellant pressure to a stable operating level that prevents surge-loading or hydraulic failure.

Manufactured with a heavy-duty brass body and industrial-grade internal diaphragms, this regulator is designed for the harsh, grease-laden environments of professional cooking lines. It is a factory-calibrated component pre-set to the exact PSI requirements needed to atomize the suppression agent through the system's nozzles. For fire protection professionals, the 079318 ensures the facility meets the stringent discharge time requirements of UL 300 and NFPA 17A.

Steady-State Discharge Pressure

When a nitrogen cartridge fires, it releases a massive burst of energy. Without the 079318 regulator, this initial burst would cause the agent to atomize too violently, potentially splashing burning grease. The regulator ensures a steady-state flow, facilitating the saponification process, turning hot oil into a non-flammable soap foam.

Orifice Dynamics and Flow Points

Every R-102 system is designed with a specific Flow Point (FP) count. The piping and nozzle orifices are calculated based on a specific input pressure. The 079318 ensures this pressure remains constant from the first second of discharge to the last, preventing weak zones in the manifold where the furthest nozzle might otherwise fail to reach its intended coverage area.

Internal Diaphragm Integrity

The 079318 features a specialized internal diaphragm designed for high-cycle reliability. Unlike generic regulators that can experience pressure creep, the OEM Ansul design provides a crisp response to the nitrogen pulse, ensuring the system reaches full discharge velocity in less than one second.

Compliance with NFPA 17A

NFPA requires that all pressure-regulating devices be listed and labeled for their specific application. Using the 079318 ensures your restaurant remains in full compliance with UL 300 standards. Failure to use the correctly calibrated regulator can lead to slug-flow (uneven discharge), resulting in a failed suppression event.

Mitigating Pipe Strain

Excessive pressure from an unregulated source can shock the piping manifold, leading to joint leaks. The 079318 provides the pneumatic safety buffer needed to protect your stainless steel piping and brass nozzles from mechanical over-stress.

UL Listing Continuity

Fire suppression systems are tested as a complete assembly. The 079318 is the specific UL-listed component for the Ansul R-102 system. Substituting a non-OEM regulator voids the UL listing and can lead to a red-tag from the local Authority Having Jurisdiction (AHJ).

• Large Restaurant Manifolds: Where multiple agent tanks are triggered by a single nitrogen source, requiring perfectly balanced pressure regulation.
• High-Efficiency Deep Fryers: Ensuring the dense, cooling mist is delivered without splashing grease.
• Exhaust Duct and Plenum Protection: Providing the kinetic force needed to carry the suppression agent deep into the grease-laden ductwork.
• Institutional Kitchens: Maintaining the rigorous safety standards required for public facility fire inspections.
• Industrial Paint Spray Booths: Used in specialized R-102 applications for non-kitchen hazards that require precise chemical atomization.

Mandatory Inspection Intervals

While regulators do not have a 6-month replacement cycle, they must be inspected for damage during the mandatory 6-month system check. If gauges show static line over-pressure, the regulator has likely failed.

Avoid Field Adjustments

The 079318 is factory-calibrated. Attempting to tune the regulator in the field can alter the discharge dynamics, leading to a non-compliant installation.

Check for Internal Oxidation

In humid kitchens, moisture can enter the atmospheric side. Technicians should check vent ports for signs of green oxidation or grease buildup, which can seize the diaphragm and prevent the regulator from opening during an emergency.

Post-Discharge Fatigue Audit

Following a full system discharge, the regulator should be tested for accuracy. High-velocity gas flow can occasionally fatigue the internal spring, requiring a fresh unit to guarantee system readiness.

What happens if the regulator fails in the "closed" position?

If the regulator fails closed, the system will not discharge. The nitrogen remains in the cartridge, and the agent remains in the tank. This is why using OEM parts like the 079318 and performing regular fire safety inspections are critical to life safety.

Is this regulator compatible with the Ansul Piranha system?

No. The Piranha system uses a different discharge dynamic involving water and chemical agents, requiring a specific regulator calibrated for dual-agent pressures. Always cross-reference the fire suppression technical manual.

Can I clean a "sticky" regulator with WD-40?

No. Petroleum-based lubricants degrade the internal rubber diaphragms and attract more grease. If a regulator is sticking, it is a failed safety component and must be replaced with a new OEM 079318.
