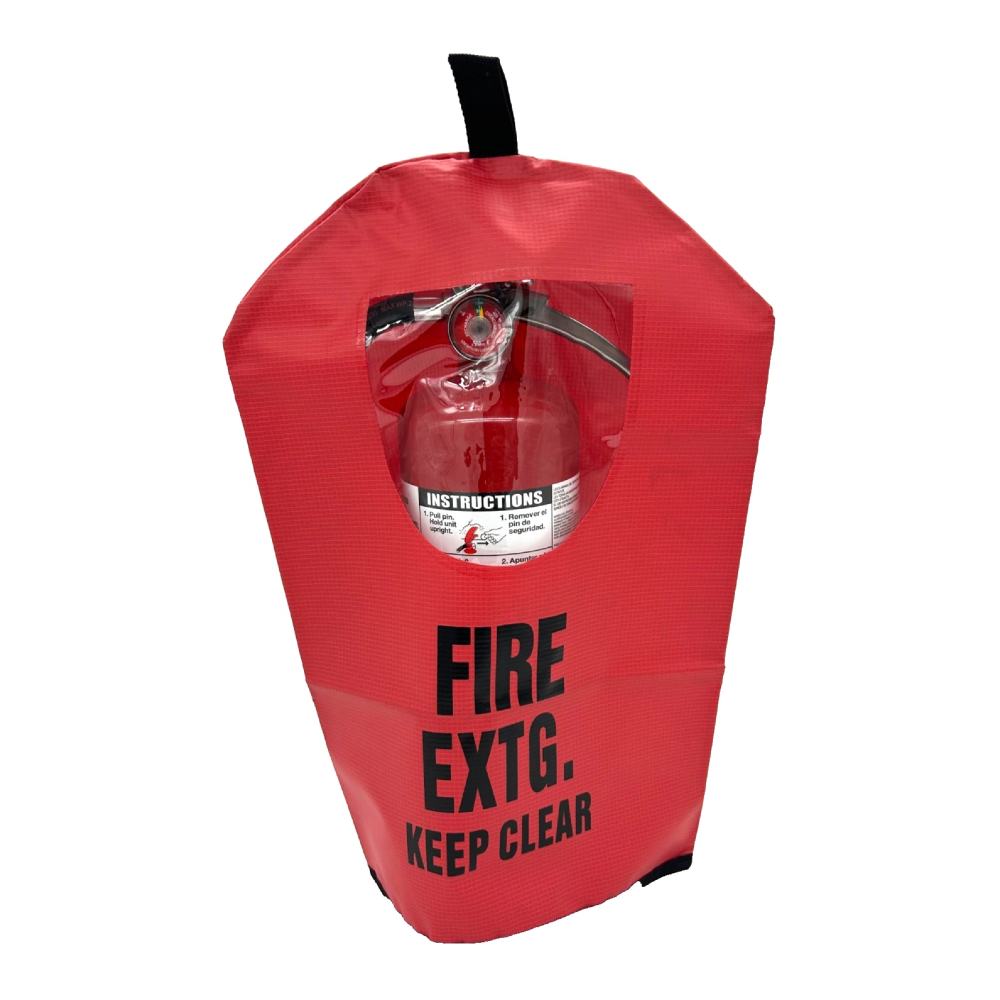

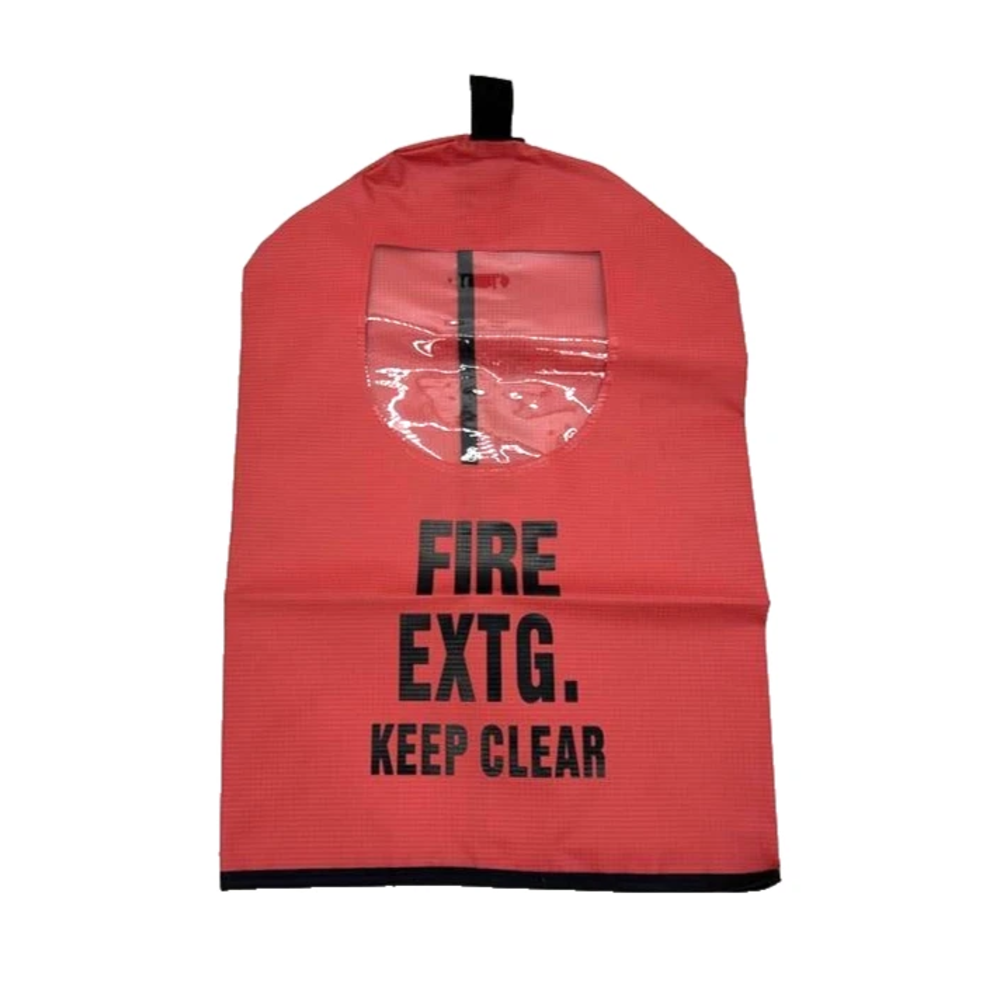

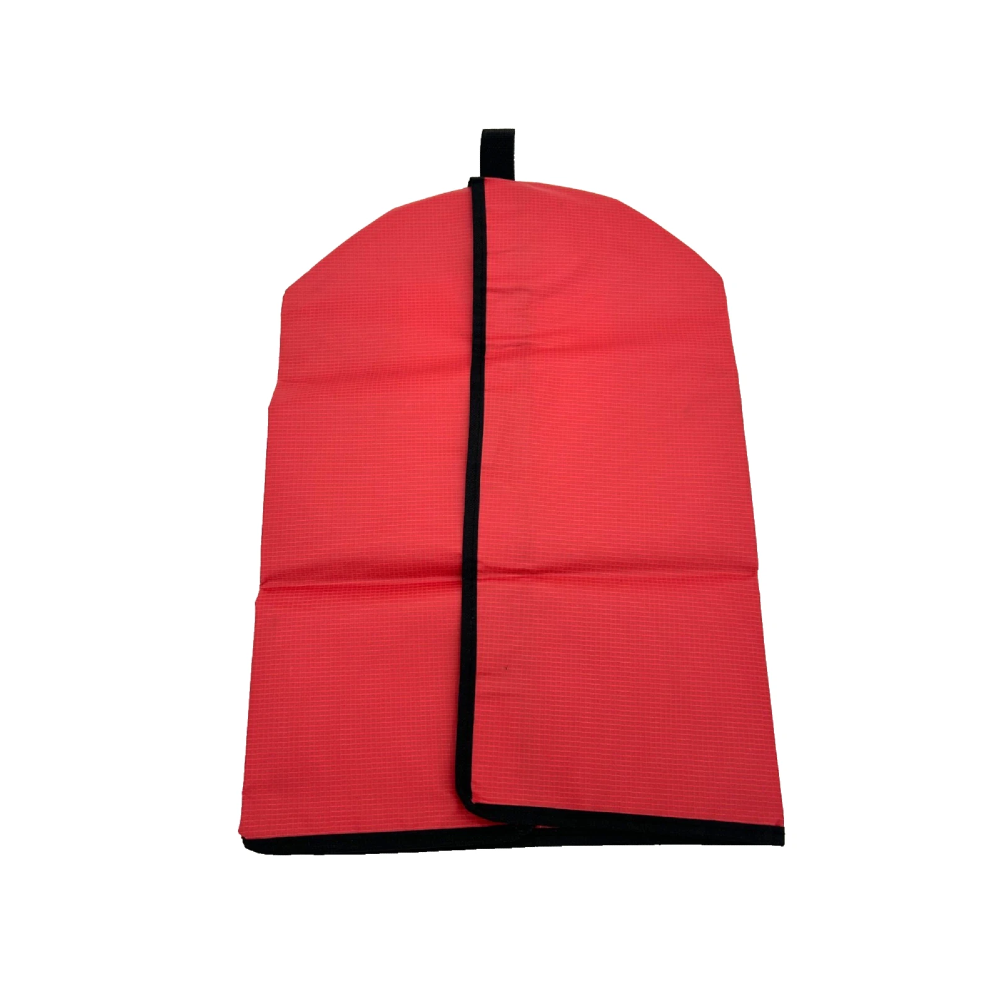

Universal 20LB Extinguisher Cover

The Universal 20LB Extinguisher Cover is a high-performance protective solution engineered to preserve the operational integrity of large-format fire extinguishers in demanding environments. In many industrial and outdoor settings, fire extinguishers are passive assets that may sit for months or years before being needed. Without protection, these units are subject to a constant barrage of moisture, UV radiation, and industrial dust. The Universal 20LB Cover acts as a weather-tight barrier, ensuring that mechanical components such as the pull pin, discharge lever, and nozzle remain free of debris and ready for instantaneous deployment.

Designed with a universal-fit geometry, this cover is compatible with almost all major 20-lb dry chemical cylinders. It is the definitive choice for facilities looking to reduce long-term maintenance costs by preventing the premature corrosion and hose degradation that leads to expensive fail ratings during annual inspections. For facility managers, this cover is a strategic insurance policy for your most critical life-safety hardware.

Reinforced Vinyl (PVC) Construction

High-end 20LB covers are manufactured from 10oz to 14oz reinforced vinyl. This material is inherently non-porous, making it an absolute barrier against salt-air pitting in coastal environments and grease-loading in commercial kitchens. The PVC is treated with UV inhibitors to prevent the brittleness and cracking that typically destroys standard plastics when exposed to direct sunlight.

Acrylic-Coated Polyester Alternative

For environments with extreme temperature fluctuations, acrylic-coated polyester offers superior breathability while remaining water-repellent. This helps prevent the greenhouse effect, the buildup of condensation inside the cover that can accelerate the corrosion of a steel cylinder if not properly managed.

High-Visibility Fluorescent Pigments

The fire red color is achieved through high-saturation pigments that maintain their luminance even under thick layers of dust. This ensures the extinguisher remains a primary visual target for staff during the chaotic early stages of a fire emergency.

Compliance with NFPA 10 Environmental Mandates

NFPA 10 requires that extinguishers exposed to inclement weather or corrosive atmospheres be protected. A cover is the most cost-effective way to meet this requirement without the high capital expenditure of fiberglass cabinets.

Pull-to-Release Ergonomic Standard

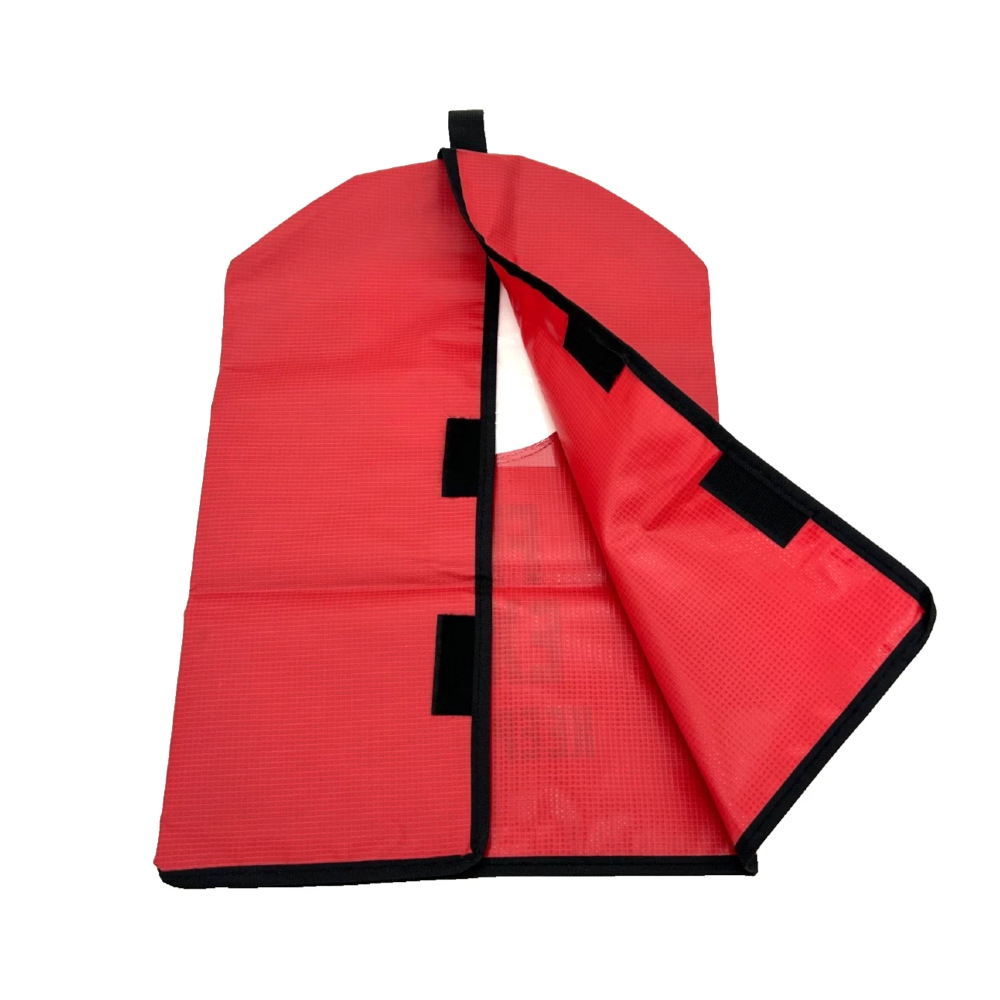

These covers utilize industrial-grade hook-and-loop (Velcro) fasteners. Unlike zippers that can seize due to rust, Velcro provides a reliable, one-handed release mechanism, ensuring the unit meets OSHA 1910.157 standards for immediate accessibility.

Integrated Inspection Window Efficiency

Many 20LB covers feature a thermally-welded clear window. This allows technicians to verify the pressure gauge and annual inspection tag without removing the cover, reducing monthly inspection labor costs in large facilities.

• Outdoor Construction Sites: Shielding 20-lb ABC units from mud and concrete dust on high-rise build sites.
• Maritime Facilities: Protecting against the high-salinity air of marinas and offshore platforms where raw steel cylinders can pit within months.
• Commercial Kitchens: Preventing aerosolized vegetable oils from caking onto the safety pin, which can make a unit nearly impossible to pull.
• Manufacturing Shops: Guarding against combustible dust that can enter the discharge hose and create a blockage during use.
• Parking Garages: Reducing the impact of freeze-thaw cycles that can stress the gauge seals and hose gaskets.

Sizing Verification Protocol

Ensure the cover is not over-tight. A properly sized cover should have 1 to 2 inches of play to allow for easy removal. If the cover is too small, the Velcro may pop open, leaving the unit exposed to environmental degradation.

Cleaning and Finish Care

Avoid using harsh petroleum-based solvents which can strip the UV-protective layer. A simple solution of mild soap and water is the industry standard for maintaining the visibility of the red pigment.

Sacrificial Barrier Management

While durable, the cover is a sacrificial barrier. Once the material becomes brittle or the lettering becomes illegible due to UV fading, the cover must be replaced to remain in compliance with visual safety standards.

Orientation for Success

Always install the cover so that the Velcro release is facing toward the path of egress. This ensures that staff running toward the extinguisher can grab the release tab in one fluid motion.

Will this cover fit a 20-lb CO2 extinguisher?

Most Universal 20LB covers will fit, but the fit will be tighter around the discharge horn assembly. Always verify that the cover can still be removed instantly during a fire emergency response.

Can I use this cover inside a building?

Absolutely. Many facilities use them in dirty indoor environments like textile mills or auto-body shops to keep fine particulates off the life-safety equipment.

Is it better to have a cover or a cabinet?

Cabinets offer more physical protection against impact such as forklifts, but are more expensive. A cover is the most economical way to achieve atmospheric protection where space is limited or where units are mounted on pallet rack uprights.
