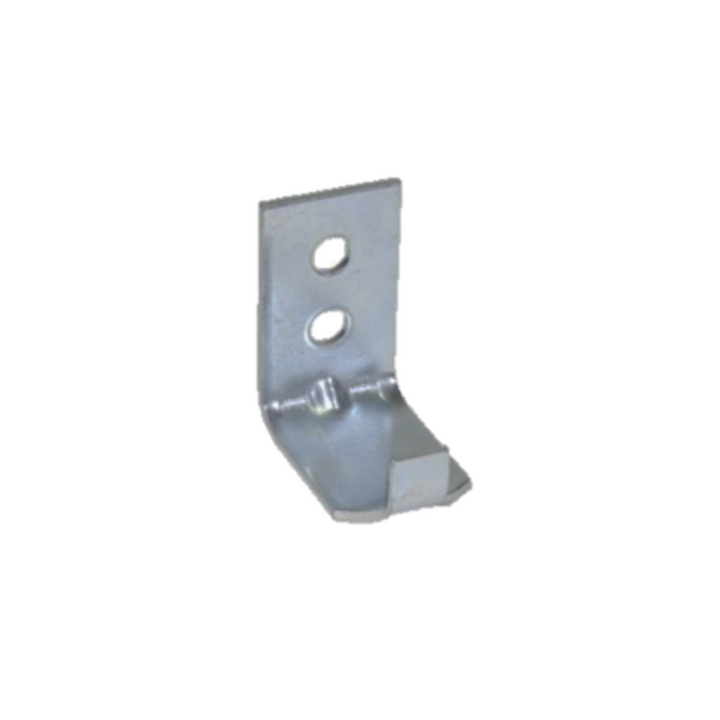

OEM 5LB Wall Hook for Ansul Sentry - 054405

The Ansul 5 LB Wall Hook (054405) is a mission-critical mounting component engineered specifically for the Ansul Sentry 5-lb Dry Chemical fire extinguisher series. In a commercial or industrial facility, a fire extinguisher is a dormant asset that must transition to an active state in seconds. The 054405 provides the essential structural link between the facility's architecture and life-safety equipment. This OEM hook is designed to accommodate the exact weight and shell curvature of the Sentry cylinder, providing a level of zero-wobble security that universal, one-size-fits-all brackets cannot guarantee.

Manufactured from heavy-gauge, plated steel, the 054405 is built to endure the high-traffic, high-vibration environments typical of manufacturing plants and warehouse corridors. By utilizing a J-Hook geometry, the bracket allows the extinguisher to hang securely under its own weight while remaining instantly releasable with a single upward motion. For facility directors, the 054405 is the definitive choice for ensuring every 5-lb unit in their fleet remains code-compliant and ready for immediate deployment.

Shear Strength and Static Load Resilience

A fully charged 5-lb Sentry extinguisher weighs approximately 9.5 to 10 lbs. The 054405 is engineered to withstand significantly higher dynamic loads such as accidental impacts. The high-tensile steel resists bending or opening of the hook under stress, preventing the unit from falling and potentially causing an unintended discharge.

Corrosion-Resistant Metallurgy

Fire hardware is often installed in unconditioned spaces like loading docks. The 054405 features a durable zinc-plated finish that prevents surface oxidation. A rusted bracket can eventually seize to the extinguisher's hanger loop or fail structurally, creating a serious liability risk.

Ergonomic Quick-Lift Geometry

The curvature of the 054405 is precision-matched to the hanger loop on the Sentry's valve head. This ensures the extinguisher sits plumb against the wall. Proper vertical alignment prevents the internal caking of dry chemical powder that can occur when units are stored at an angle for long periods.

Compliance with NFPA 10 Mounting Mandates

NFPA 10 requires that extinguishers be firmly secured on hangers. Using a non-OEM bracket often results in a loose fit that can be flagged by a Fire Marshal (AHJ). The 054405 provides a manufacturer-approved mounting solution that passes every inspection.

Minimizing Path-of-Egress Protrusion

In high-traffic corridors, the protrusion limit for any wall-mounted object is typically 4 inches. The low-profile design of the 054405 keeps the Sentry unit tucked close to the wall, ensuring the facility remains compliant with the Americans with Disabilities Act (ADA) and the International Building Code (IBC).

Logistical Efficiency in Bulk Maintenance

Standardizing on the 054405 hook allows for a swap-and-go maintenance workflow. Technicians can swap cylinders for 6-year maintenance or hydrostatic testing without drilling new holes, saving significant labor costs over the building's lifecycle.

• Industrial Warehousing: Securing extinguishers along pallet rack uprights or concrete pillars where durability is paramount.
• Educational Corridors: Providing a rounded-corner, low-profile mounting solution that reduces injury risks in high-traffic environments.
• Mechanical Galleries: Resisting the vibrations of large air handlers while keeping safety equipment within reach of maintenance crews.
• Commercial Office Suites: Offering a clean, minimalist look that fulfills safety requirements without detracting from interior design.
• Hospitality and Retail: Ensuring fire protection is always accessible behind counters and in back-of-house storage areas.

Structural Anchoring Protocol

The 054405 should ideally be mounted directly into a wall stud using lag screws. If mounting into drywall, use high-quality toggle bolts. Standard plastic anchors are not rated for dynamic loads and will eventually pull out of the wall.

Mounting Height Verification

Per NFPA 10, for units under 40 lbs, the top of the extinguisher must be no more than 5 feet (60 inches) from the floor. This ensures the handle is within the standard reach of most adults.

Monthly Visual Inspection

Inspectors should check for hardware drift. If the 054405 is pulling away from the wall or the hook is gapping open, the hardware must be replaced immediately to prevent a workplace accident.

Finish Care

In industrial environments, the hook can accumulate grease. A simple wipe-down is all that is required. Avoid abrasives that could strip the plating and expose raw steel to corrosive oxidation.

Will this hook work for an Amerex or Badger 5-lb extinguisher?

The 054405 is factory-tuned for the Ansul Sentry series. While other brands may look similar, the hanger loop gauge can vary. Using it with other brands may result in a loose fit that does not meet the firmly secured requirement.

Is this the same thing as a vehicle bracket?

No. A wall hook relies on gravity. For vehicles, forklifts, or boats, you must use a vehicle bracket with a strap to prevent the extinguisher from becoming a projectile during movement or impact.

What are the specific requirements for ADA compliance?

To meet ADA protrusion standards, the extinguisher must not extend more than 4 inches into a hallway if mounted between 27 and 80 inches high. The 054405's low-profile design is specifically engineered to help 5-lb units stay within these tight hallway clearance limits.
