Ansul Alarm Initiating Switch SPDT 428311

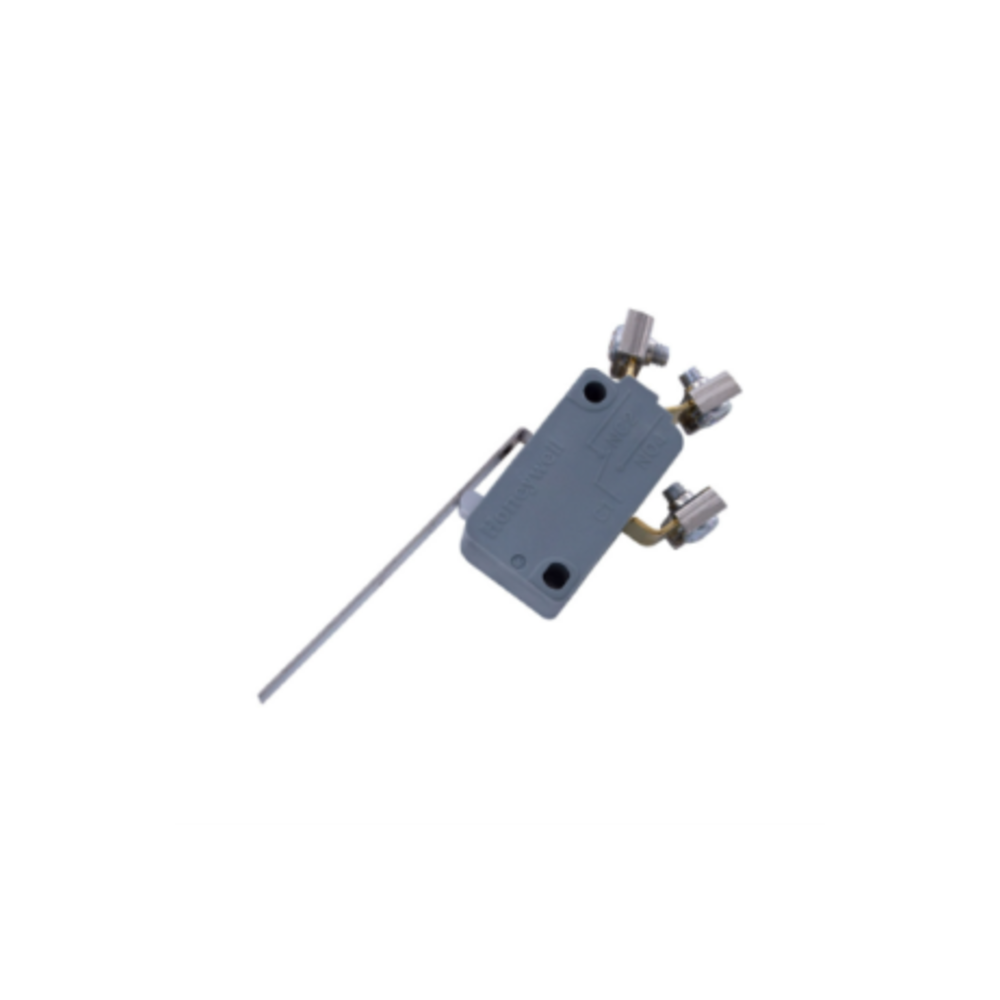

The Ansul Alarm Initiating Switch (428311) is a specialized, single-pole, double-throw (SPDT) electrical microswitch designed to serve as the critical communication bridge between a mechanical fire suppression system and a building's Fire Alarm Control Panel (FACP). In the high-stakes environment of a commercial kitchen, the physical suppression of a fire via the Ansul R-102 or PIRANHA system is only half of the safety equation. The 428311 is the component that turns a localized fire event into a facility-wide emergency response.

Engineered to fit specifically within the Ansul AUTOMAN release mechanism, the 428311 is a low-current device. It is not intended to drive heavy machinery or cut power to appliances; rather, it is a high-precision sensor that reports a change in system state. For fire alarm technicians and system integrators, the 428311 is the essential hardware required to satisfy modern building codes that demand smart integration between fire suppression and life-safety notification networks.

Single-Pole, Double-Throw (SPDT) Dynamics

The 428311 features one common terminal and two throws, Normally Open (NO) and Normally Closed (NC). In most fire alarm applications, the switch is wired in the NO configuration. When the system actuates, the internal cam of the AUTOMAN toggles the switch to the closed position, sending a fire signal to the FACP.

Supervised Circuit Integrity

Modern fire alarm systems are supervised, meaning the panel constantly sends a tiny current to check for breaks. The 428311 is rated for 50 mA at 28 VDC, the standard operating range for supervised alarm loops. This ensures that if a wire is cut, the panel will report a trouble alarm immediately, preventing a silent failure.

Kinetic-to-Electrical Conversion

Inside the AUTOMAN, a roll pin rotates during the release sequence. The 428311 is mounted such that this rotation physically depresses the switch lever. This conversion of kinetic motion into an electrical signal must be precisely calibrated, which is why the kit includes specialized spacers for precision mounting.

Distinction from High-Current Switches

A common mistake is confusing the 428311 with the 423879 (High-Current DPDT). The 428311 is optimized for signal-level currents. Using a high-current switch for a supervised loop can result in contact ghosting. The 428311 ensures a crisp digital signal that prevents false alarms.

Eliminating the Human Factor

During a kitchen fire, staff are often overwhelmed. While manual pull stations exist, they are frequently forgotten. The 428311 automates this process. The moment the agent drops, the building is notified regardless of human intervention.

Facilitating Off-Site Monitoring

For facilities that are not staffed around the clock, such as ghost kitchens or stadium concessions, the 428311 is the only way to notify a central monitoring station. This allows for the automatic dispatch of the fire department, potentially saving the structure from an after-hours fire.

• Commercial Kitchens (R-102): Providing the mandatory link between the kitchen hood and building strobes and horns.
• Hybrid Suppression (PIRANHA): Coordinating notification as the system transitions between chemical suppression and water-spray cooling.
• Multi-Zone Facilities: Allowing for point-identification on an addressable fire panel, telling responders exactly which hood has discharged.
• Remote Shutdown Signaling: Triggering secondary relays that might unlock emergency exits or engage smoke-evacuation fans.
• Industrial Paint Booths: Interfacing with Ansul IS systems to provide alarm notification in flammable vapor environments.

The Spacer Mandate Protocol

Never install the 428311 without the included spacer. The spacer ensures the switch is at the exact depth to be caught by the roll pin. Omitting this is a leading cause of failure to initiate during audits.

Wire Integrity Testing

After wiring, technicians must verify the end-of-line (EOL) resistor is properly placed. This allows the panel to supervise the wiring all the way to the 428311 terminals.

Semi-Annual Functional Testing

Per NFPA 17A, technicians must perform a silent trip of the AUTOMAN. While the nitrogen cartridge is removed, the system is manually triggered to ensure the 428311 toggles correctly.

Contact Resistance Audit

In older systems, grease can penetrate the enclosure. A technician should use a multimeter to ensure the switch provides near-zero resistance. Significant resistance indicates pitted contacts, requiring immediate replacement.

Can I use the 428311 to shut off my gas valve?

No. The 428311 is rated for very low current (50 mA). A gas valve solenoid requires significantly more power. For fuel shut-off, you must use a high-current switch like the Ansul 423879.

What happens if the fire panel is in "test mode"?

The 428311 will still toggle mechanically, but the building alarms will not sound. This is why technicians must coordinate with the fire alarm company during the semi-annual system test to ensure the point is verified.

Is this switch compatible with older Ansul systems?

Yes. The 428311 is designed to be backwards compatible with most legacy Ansul R-102 AUTOMAN release mechanisms, provided the mounting plate has the standardized auxiliary switch holes.
