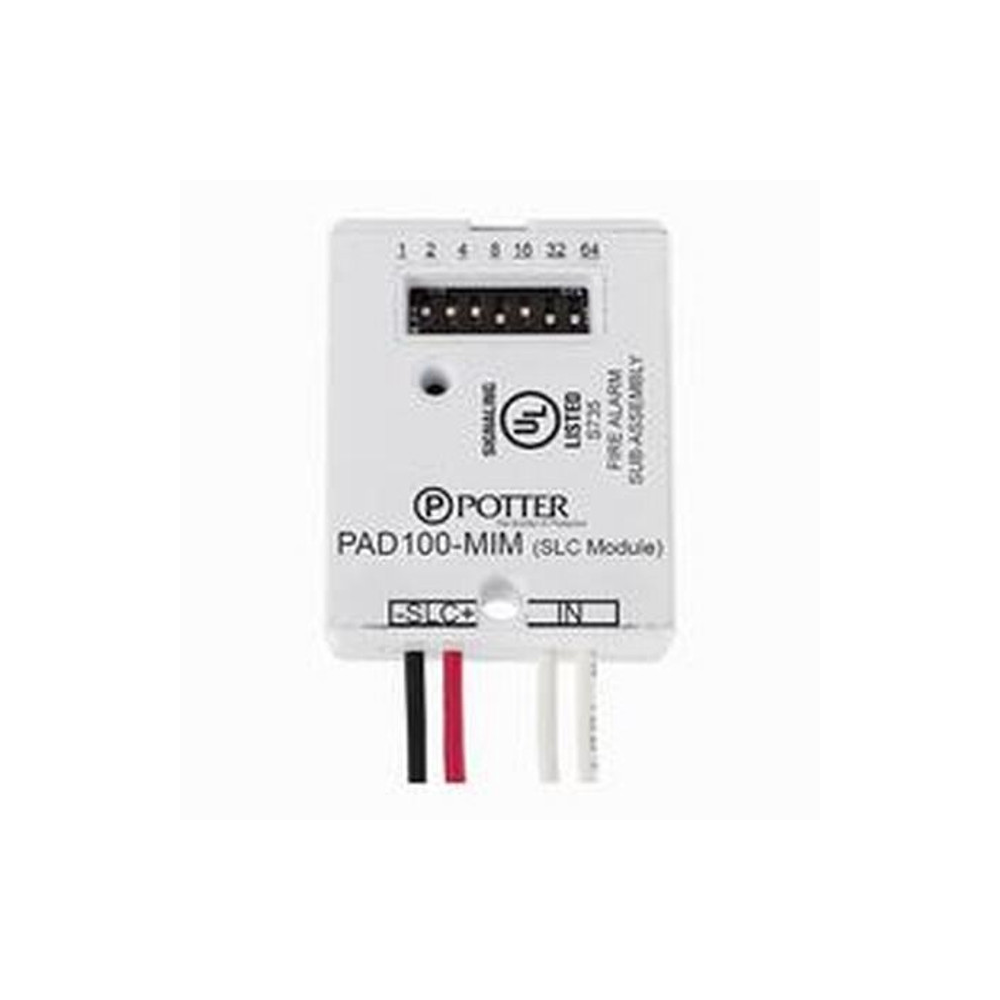

PAD 100-MIM Micro Input Module

The Potter PAD100-MIM Micro Input Module (3992700) is an ultra-compact addressable interface designed to integrate conventional, non-addressable initiating devices into the Potter PAD series fire alarm control panels. In the hierarchy of a life-safety system, the PAD100-MIM acts as a digital translator. It converts a simple dry contact closure from a standard device, such as a manual pull station, waterflow switch, or heat detector, into a unique digital address on the Signaling Line Circuit (SLC).

The defining characteristic of the 3992700 is its micro form factor. Measuring just over two inches wide, it is specifically engineered to be tucked directly into the electrical backbox of the device it monitors. This eliminates the need for bulky external junction boxes and excessive conduit runs, allowing for a cleaner installation. For contractors, this module is the definitive tool for performing invisible addressable upgrades to existing facility infrastructure.

Class B (Style B) Supervision

The PAD100-MIM monitors a single Class B initiating circuit using a 5.1K Ohm End-of-Line (EOL) resistor to maintain a constant supervisory current. By measuring the resistance across the circuit, the module distinguishes between three states: Normal (resistor detected), Alarm (short circuit), and Trouble (open circuit / broken wire).

SLC Protocol Efficiency

Operating on the advanced Potter PAD protocol, the 3992700 communicates with the Fire Alarm Control Panel (FACP) via high-speed polling while consuming only 240 uA standby current. This low-power profile allows designers to maximize device counts on a single SLC loop without exceeding power supply capacity.

Dip Switch Addressing Reliability

The PAD100-MIM utilizes a physical 7-position dip switch for addressing rather than software-based methods. This ensures the device maintains its specific identity even during catastrophic power surges, the preferred standard for high-security facilities where address-drift is a concern.

Elimination of External Junction Boxes

Because the 3992700 fits in a standard single-gang box, it reduces the visual footprint of the fire alarm system. This is a critical selling point for architects in high-end retail, hospitality, and corporate office environments.

Compliance with NFPA 72 Point-ID Mandates

NFPA 72 requires precise identification of alarm locations. The PAD100-MIM allows you to give non-addressable devices a specific point-ID on the panel (e.g., "3rd Floor North Riser Waterflow"), significantly reducing emergency response times for first responders.

Retrofit Versatility

In many older buildings, replacing every conventional pull station is cost-prohibitive. The PAD100-MIM allows contractors to addressable-ize existing hardware at a fraction of the cost, bringing the facility up to modern code standards without a full system rip-and-replace.

• Sprinkler System Supervision: Monitoring OS&Y gate valves and waterflow pressure switches at the riser to ensure the suppression system is operational.
• Manual Pull Station Conversion: Upgrading non-addressable pull stations to the PAD SLC loop while maintaining the original architectural hardware.
• HVAC Duct Detection: Monitoring remote duct smoke detectors in cramped mechanical mezzanines where a standard module would not fit.
• Security Integration: Interfacing with dry contacts from security panels or kitchen hood suppression systems.
• Industrial Monitoring: Providing addressable reporting for machinery fault contacts in manufacturing environments.

LED Status Verification

The 3992700 features an on-board LED. During normal operation, it will flash green to indicate successful polling. If the device enters an alarm state, the LED will latch solid red. Technicians should verify this during monthly walkthroughs.

EOL Resistor Placement Protocol

The 5.1K Ohm resistor must be placed at the end of the line, not at the module terminals. Placing it at the module defeats the supervision aspect, as a break in the wire would go undetected, which is a major code violation.

SLC Wiring Integrity

When wiring the loop, ensure a clean series-circuit in-and-out method. This is the industry standard for preventing data collisions and troubleshooting headaches.

Annual Functional Testing

Per NFPA 72, the input device must be physically activated (e.g., opening a valve) once per year to ensure the PAD100-MIM correctly transmits the alarm signal to the FACP.

What is the difference between the PAD100-MIM and a standard PAD100-IM?

The M stands for micro. The standard PAD100-IM is a larger 4-inch square device. The MIM (3992700) is roughly one-third the size, designed specifically for internal backbox mounting where space is limited, a key factor in retrofit logistics.

Can I monitor two different devices with one PAD100-MIM?

No. The PAD100-MIM is a single-input module. While you can wire multiple contacts in parallel, they would all report as the same address. For independent point identification, each device requires its own dedicated module.

Does this module require a separate power supply?

No. The PAD100-MIM is powered entirely by the SLC loop. This two-wire technology simplifies installation significantly, as no auxiliary 24VDC power runs are required for device operation.
