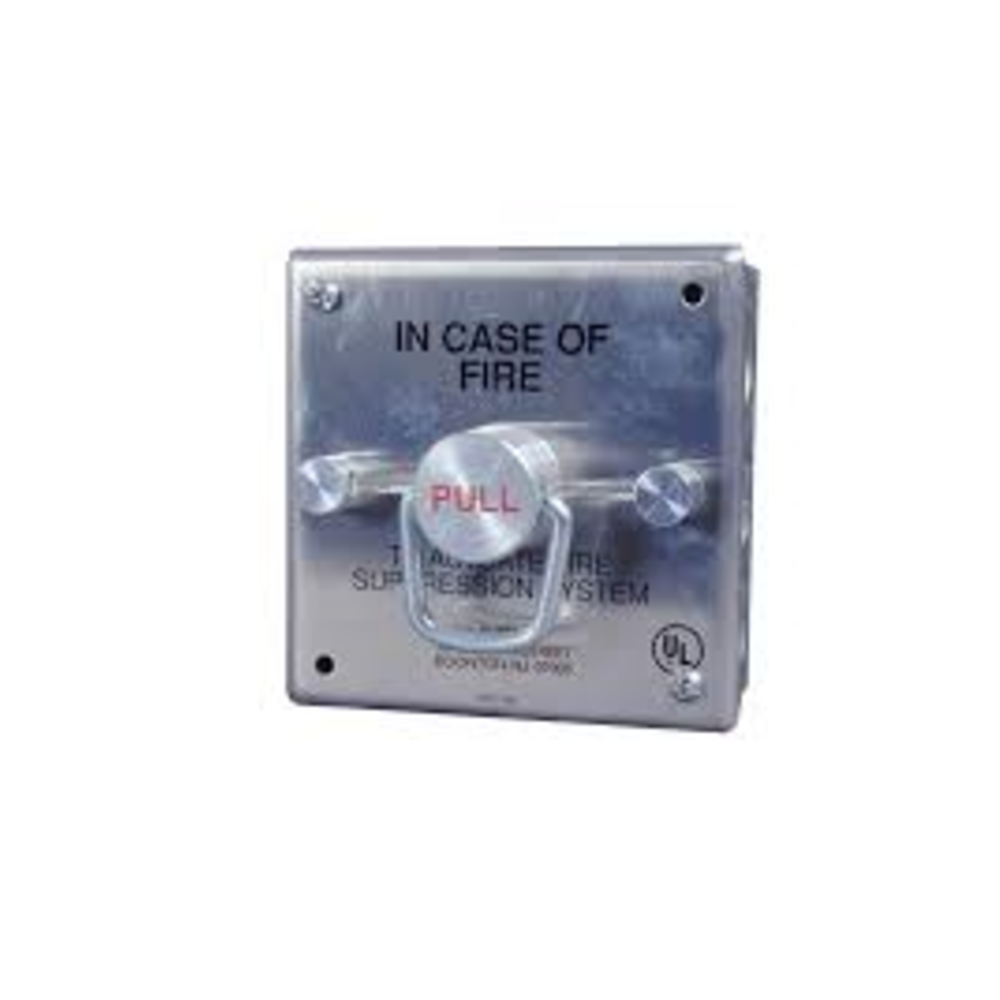

Pyro-Chem Pull Station RPS-M - 551074

The Pyro-Chem RPS-M Pull Station (551074) is a critical manual override component designed for industrial and commercial fire suppression systems. While automatic detection via fusible links is the primary defense, the RPS-M provides the essential human element, allowing personnel to manually trigger the discharge of extinguishing agents the moment a fire is sighted. In the chaotic seconds of a kitchen flare-up, this device acts as the high-visibility bridge between human observation and mechanical suppression.

Built for durability in high-heat environments, this manual remote pull station uses a rugged mechanical cable linkage. This design ensures the system remains functional even during total power failures, as it does not rely on electrical circuits to actuate the suppression cylinders. It is a staple in professional kitchen fire safety, specifically engineered to integrate seamlessly with the Kitchen Knight II system.

The Science of Actuation: Mechanical Stroke and Cable Tension

Mechanical Stroke Calibration

The RPS-M is engineered with a specific throw or mechanical stroke. When the handle is pulled, it retracts the internal stainless steel cable by a precise distance. This displacement is mathematically matched to the control head release sear, ensuring that a single, fluid motion is sufficient to puncture the agent cylinder.

Tension-Loss Logic

Unlike electrical switches that make a circuit, the RPS-M works in conjunction with a detection line tensioner. In some configurations, the pull station introduces a tension drop that simulates the melting of a fusible link, triggering a reliable response from the mechanical control head.

High-Stress Component Integrity

The internal pulleys and bushings within the 551074 housing are manufactured to minimize cable friction. This ensures that the force applied by the user is transmitted directly to the suppression system without binding or cable stretch, a vital metric in manual pull station engineering.

• Commercial Cooking Lines: Providing a manual override for fryer batteries and charbroiler stations.
• Institutional Cafeterias: Essential for schools and hospitals where staff require a simple, intuitive fire activation interface.
• High-Volume Catering Units: Ensuring safety in fast-paced environments where manual override accessibility is a code requirement.
• Modular Kitchen Units: A compact, wall-mounted solution that can handle the vibration and space constraints of mobile food service.
• Industrial Spray Booths: Acting as a remote trigger for dry chemical systems in hazardous coating environments.

To maintain NFPA 17A and NFPA 96 compliance, the installation of the RPS-M must follow strict professional protocols:

• Egress Route Placement: Per NFPA guidelines, pull stations should be located along a path of egress, typically between 10 and 20 feet from the protected appliances. This ensures the operator is moving away from the fire during activation.
• Height Requirements: The station must be mounted at a height (usually 42 to 48 inches) that is easily accessible to all staff members, following ADA-compliant fire safety standards.
• Cable Protection: The mechanical cable must be routed through EMT conduit or specialized corner pulleys to prevent kinking. A bent cable can increase the pull-force required, potentially delaying activation during a kitchen emergency.
• Semi-Annual Inspection: During the mandatory 6-month check, a certified fire technician must perform a live pull (with the cylinders disconnected) to ensure the handle moves freely and the cable triggers the control head sear instantly.

Does the RPS-M 551074 require a battery?
No. The RPS-M is a purely mechanical device. It triggers the system by pulling a physical cable, making it immune to electrical outages. This provides a fail-safe manual override that does not require maintenance of electrical circuits.

Can this pull station be used with Ansul systems?
No. While they look similar, the internal stroke and tension requirements of the 551074 are specifically calibrated for Pyro-Chem OEM systems. Using mismatched components can lead to a short-pull failure, which is a major system failure liability.

What is the difference between an M and an E pull station?
The M stands for Mechanical, meaning it uses a physical cable. An E (Electric) station uses a contact switch to send a signal to a solenoid. The RPS-M 551074 is the preferred choice for facilities that prioritize non-electric fire safety and reliability.
