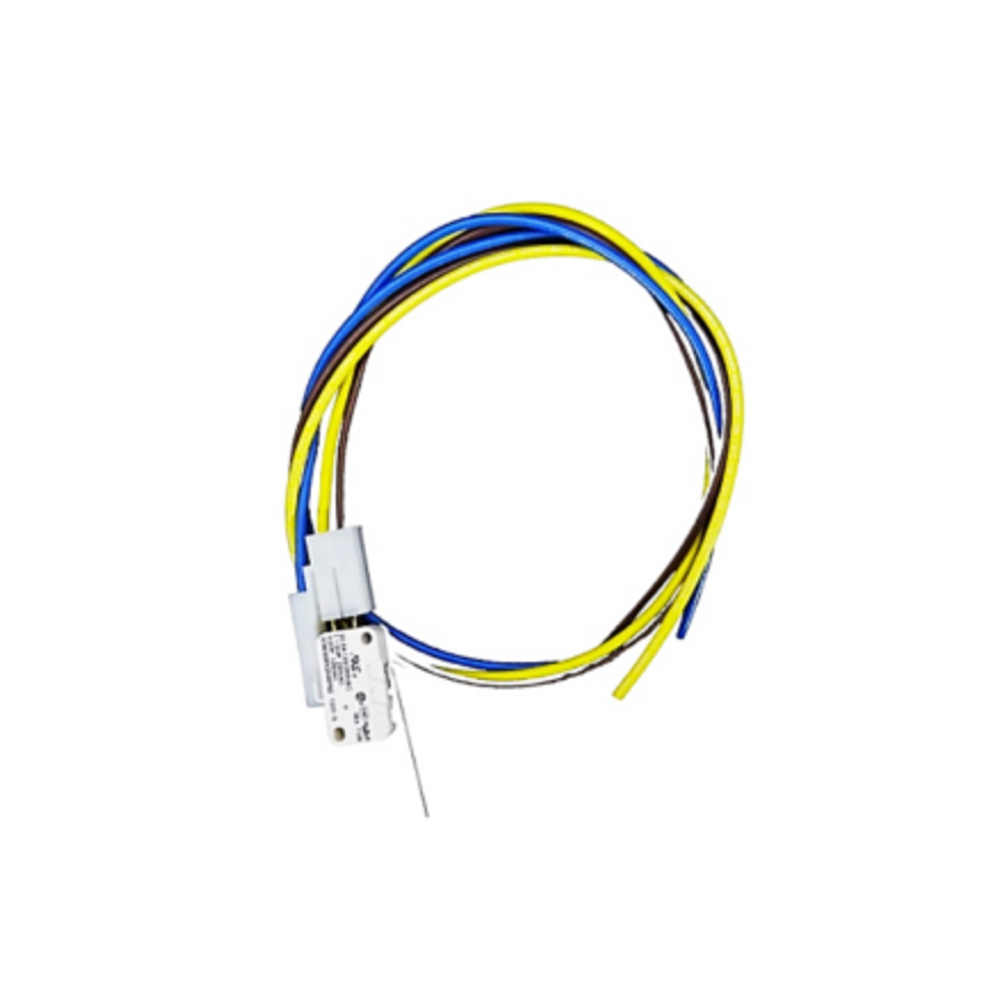

Range Guard SPDT Microswitch Kit 120039

The Range Guard SPDT Microswitch Kit (Part No. 120039) is a high-performance electrical interface engineered for the Universal Control Head (UCH) of Range Guard fire suppression systems. While the pneumatic side handles agent discharge, the 120039 serves as the primary mechanical-to-electrical bridge for utility isolation. By immediately cutting power to high-heat appliances and gas solenoids, this kit eliminates the fuel leg of the fire triangle.

Unlike low-current signal switches, the 120039 is a heavy-duty power relay featuring high-amperage metallurgy capable of handling up to 20.5 Amps. It is rated for 1.5 HP at 250 VAC, allowing it to act as a direct kill-switch for many commercial exhaust fans and makeup air units without the need for secondary contactors. The quick-connect stackable architecture allows for the integration of up to four switches in a single UCH, facilitating complex shunt-trip breaker activation and multi-voltage interlocks. For fire protection stakeholders, this OEM kit is mandatory for ensuring UL 300 and NFPA 96 compliance in modern kitchen infrastructures.

The 120039 must be installed by a licensed fire suppression technician and licensed electrician in accordance with the Range Guard UCH wiring manual, NFPA 17A, NFPA 96, and applicable local electrical codes. Up to four switches may be stacked within a single UCH using the quick-connect architecture. A non-conductive stacking insulator must be placed between each switch body when multiple units are installed. This insulator prevents cross-talk or short circuits between different voltage types, such as 120V fan relays and 24V fire alarm signals, within the same enclosure.

If any connected appliance exceeds the 20.5 Amp threshold, the 120039 must be used to trigger a magnetic contactor rather than being wired directly to the load. Direct connection to high-draw equipment can cause contact welding, where internal contacts melt together, preventing the system from ever shutting off the fuel source. Following installation, a functional test must be performed with all connected utilities to verify that every switch transitions correctly upon UCH discharge.

What is the critical difference between the 120039 and the 120047 switch?

The 120039 is a high-current power-handler meant for utility shutdown and directly interrupting appliance loads. The 120047 is a signal-level switch designed for alarm initiation or solenoid release. Using a 120047 for high-current appliance control is a dangerous code violation, as it will likely fail under the heavy electrical load.

Why is the stacking insulator required during installation?

The stacking insulator is a non-conductive barrier that must be placed between switch bodies when multiple units are installed in the UCH. This prevents cross-talk or short circuits between different voltage types, such as 120V fan relays and 24V fire alarm signals, within the same enclosure.

When should a 120039 be paired with a magnetic contactor?

If the appliance exceeds the 20.5 Amp threshold, the 120039 must be used to trigger a magnetic contactor. Wiring high-draw equipment directly to the switch can cause contact welding, where the internal contacts melt together, preventing the system from ever shutting off the fuel source.
